MAS0806030R5 – nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 800x600x300mm,IP66

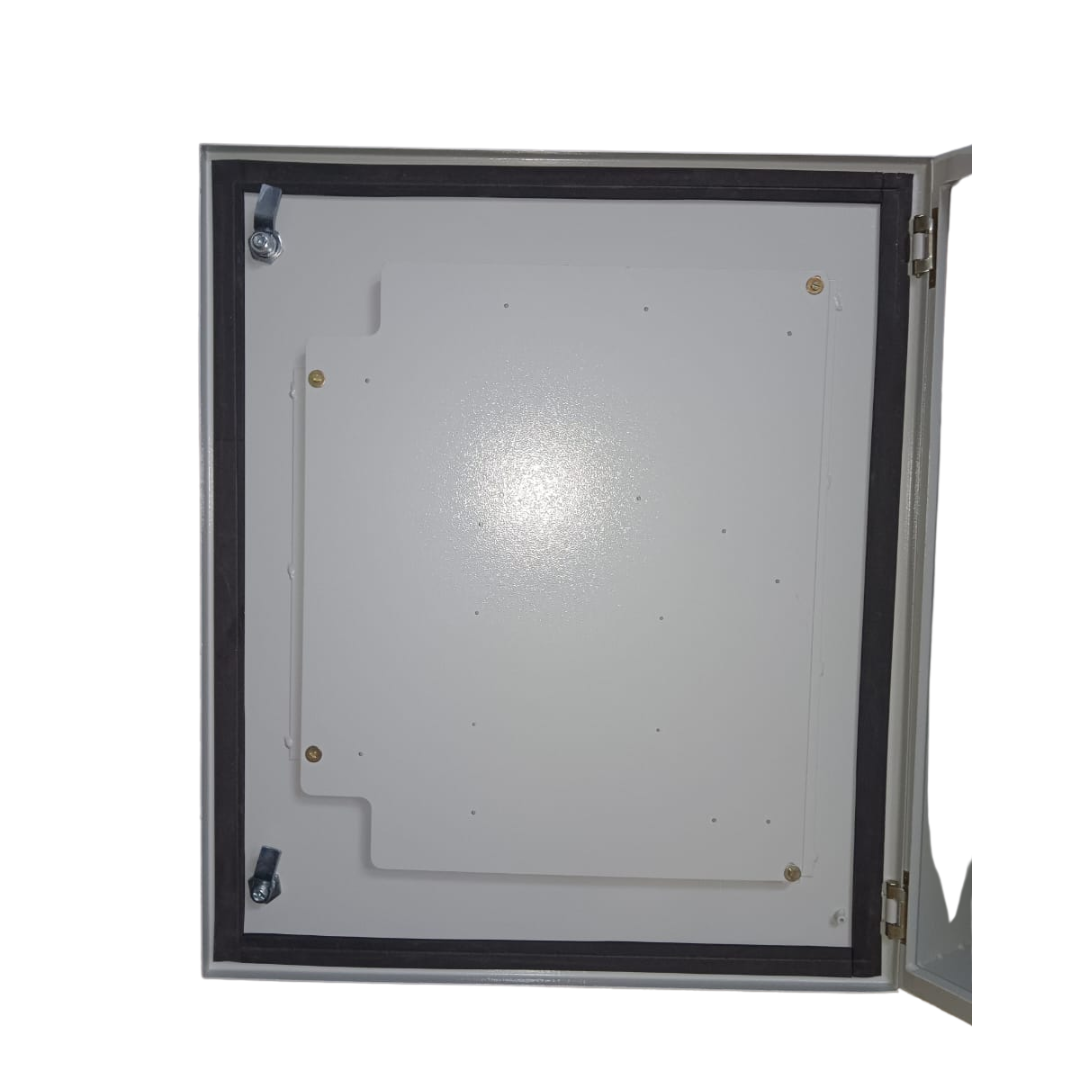

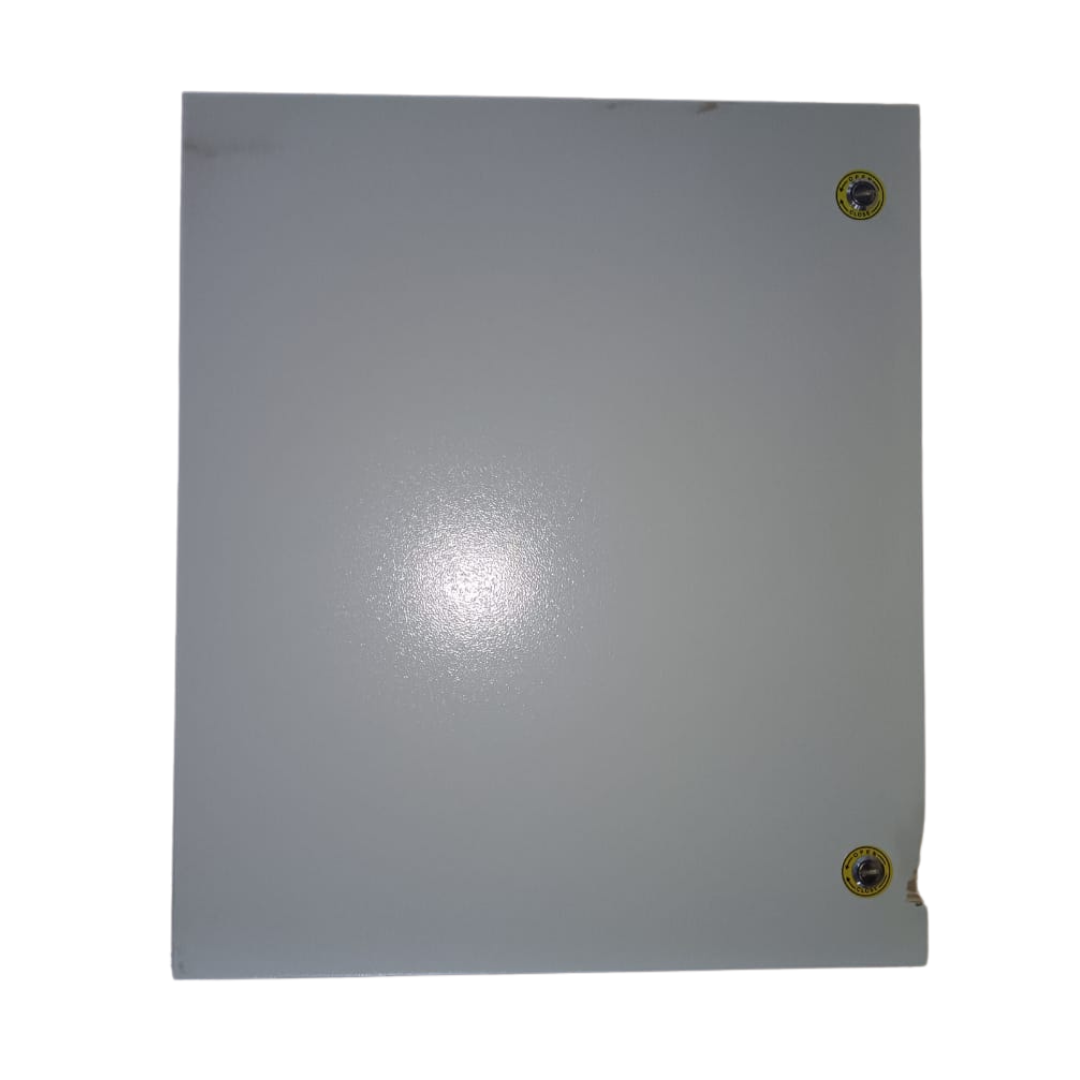

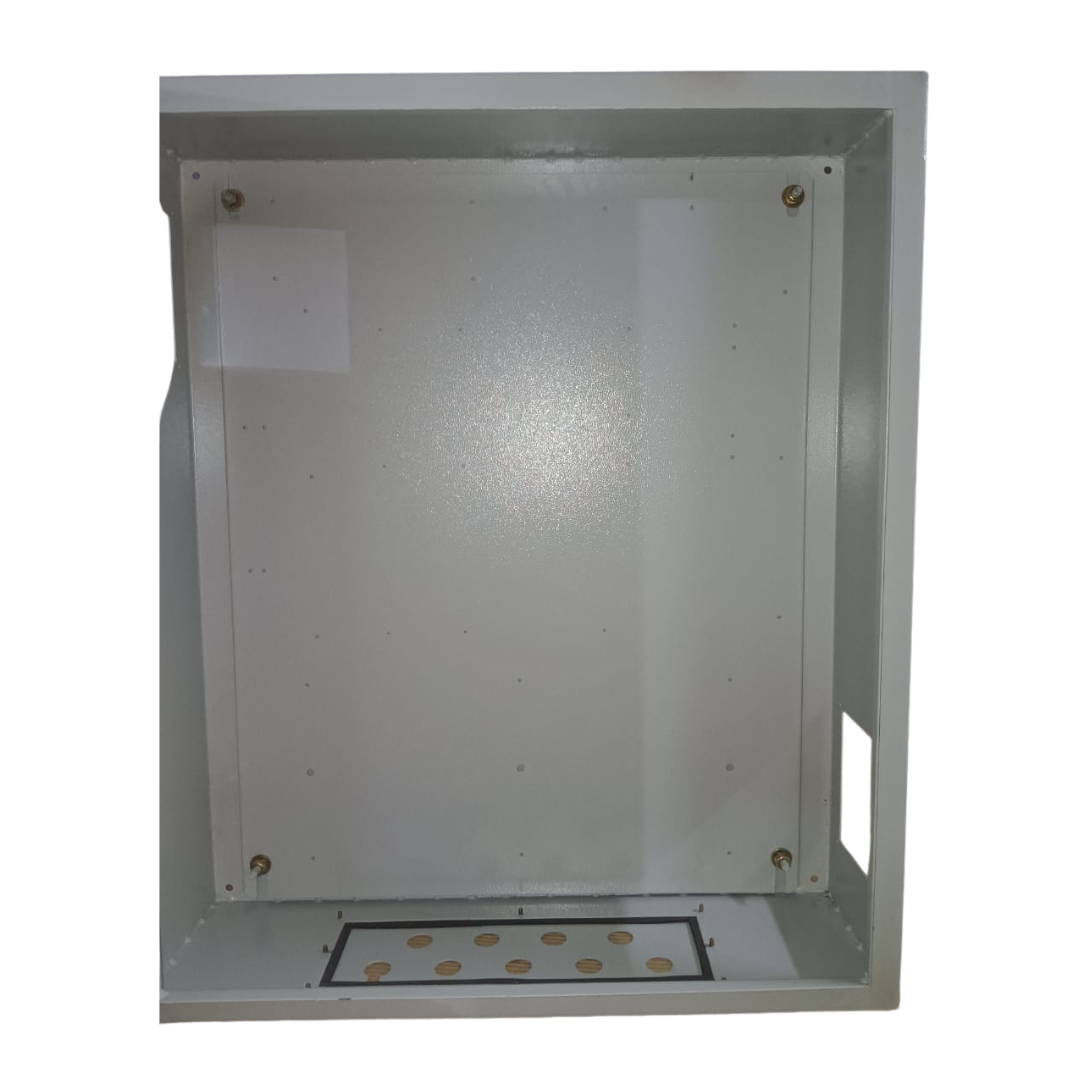

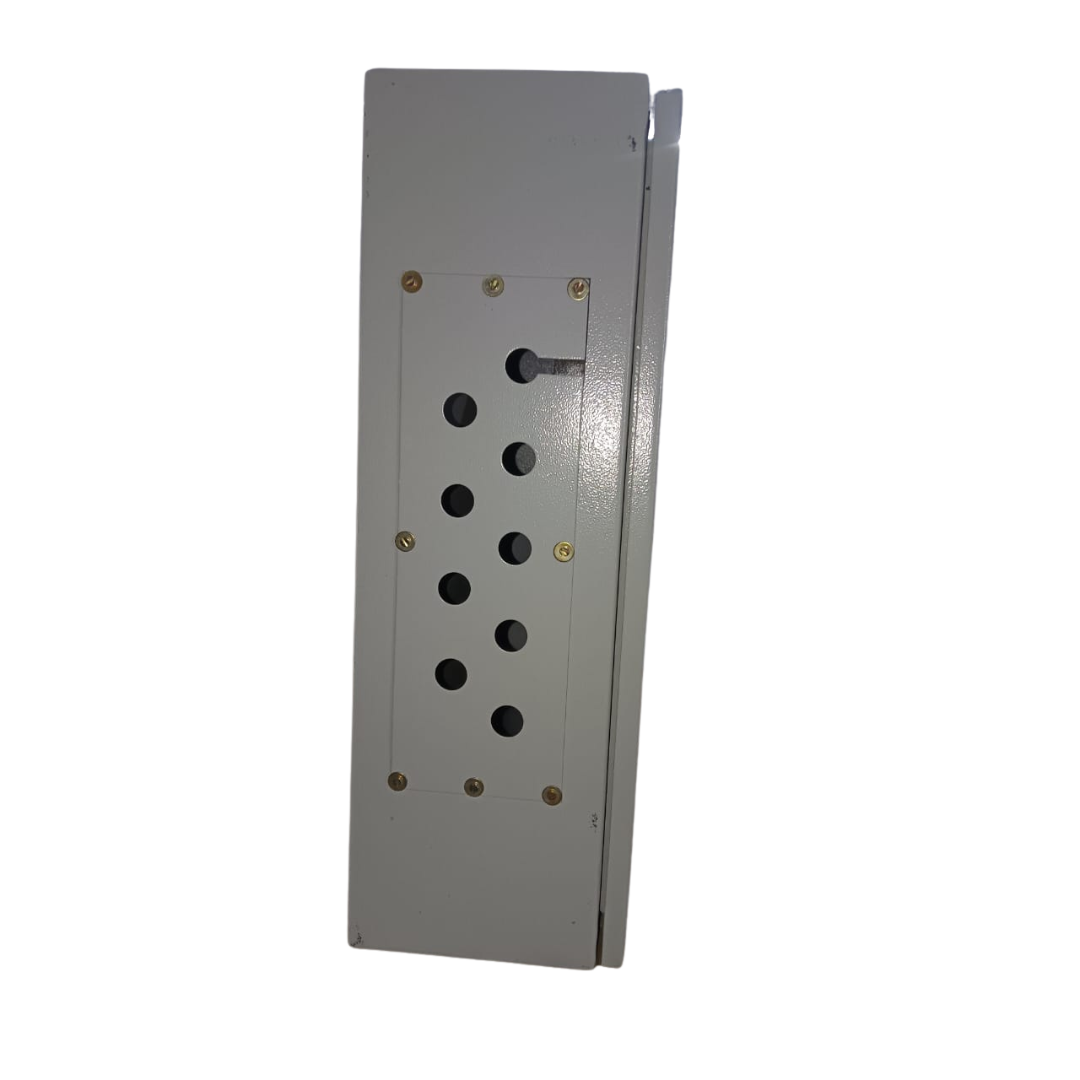

MAS0806030R5 – nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 800x600x300mm The MAS0806030R5 from nVent HOFFMAN is a robust single door enclosure designed for industrial automation, electrical control panels, and power distribution. This wall mounting enclosure provides exceptional protection with an IP66 rating, ensuring resistance to dust, water ingress, and mechanical impacts. Its mild steel enclosure construction guarantees durability in harsh industrial environments. Key Features: ✅ Heavy-Duty & Corrosion-Resistant Build – The nVent HOFFMAN enclosure is made from seam-welded mild steel with a RAL 7035 powder-coated finish for superior durability. ✅ IP66 & NEMA Certified Protection – Rated IP66, NEMA Type 4 & 12, and IK10, offering strong resistance against dust, water, and mechanical damage. ✅ Optimized Cable Management – Features a rear gland plate opening for structured and hassle-free cable routing. ✅ Adjustable Mounting Plate – Pre-marked at 10mm intervals for precise component installation. The AMG accessory allows depth adjustability. ✅ Advanced Locking Mechanism – Equipped with a double-bit 3mm lock with 90° rotation and an anti-vibration system for enhanced security. ✅ Flexible Door Configuration – The 130° opening door with concealed removable hinges supports left or right-hand installation. A polyurethane gasket ensures a tight seal. ✅ Complete Installation Kit – Includes the single door enclosure, mounting plate, gland plate, gaskets, key, and all necessary mounting accessories. Technical Specifications of MAS0806030R5: ✔ Brand: nVent HOFFMAN ✔ Material: Mild steel enclosure (1.5mm thick body & door; 2mm galvanized steel mounting plate) ✔ External Dimensions: 800mm (H) x 600mm (W) x 300mm (D) ✔ Usable Panel Area: 770mm x 550mm | Maximum Mounting Depth: 282mm ✔ Color: Light Gray (RAL 7035) ✔ Weight: Approx. 32.6kg ✔ Certifications: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC The nVent HOFFMAN single door enclosure MAS0806030R5 is an excellent choice for industrial control panels, automation systems, and electrical safety applications. Its mild steel enclosure construction, high protection rating, and flexible installation options ensure reliable performance in demanding industrial settings.
