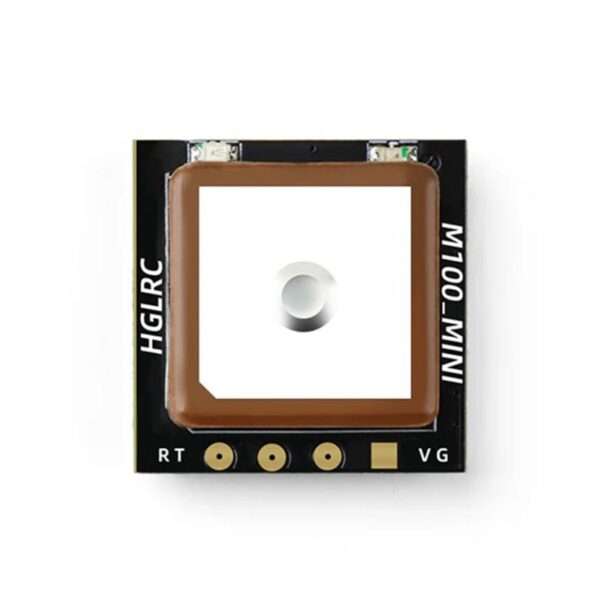

HGLRC M100 MINI GPS

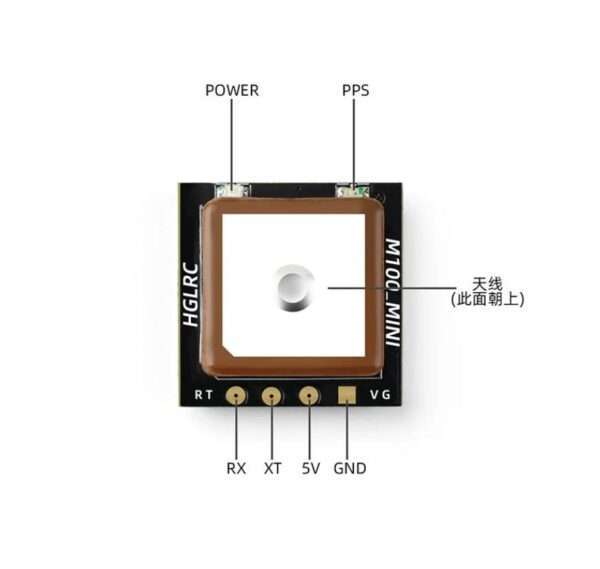

Using the new 10th-generation UBLOX chip design, the HGLRC M100 GPS positioning is fast and accurate. The small 15x15mm size can be loaded on 2-7 inch drones. The ceramic antenna and externally expanded PCB design allow M100 MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to locate in any area quickly. For the convenience of everyone, we have designed onboard LED indicators, including power indicators and positioning PPS indicators, so that you can know the working status of GPS well. Features: Using the new 10th generation chip design, fast and accurate positioning.。 Small size, compatible with 2-7 inch traversal Drone on the market Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area Onboard POWER and PPS indicator lights, the working status is clear at a glance Compatible power supply, support 3.3V-5V DC power input Specifications: Chip: M10(10th Generation Chip) Antenna: Ceramic Antenna Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1 Receive Channel: 72ch Baud Rate: 115200bps Output Frequency: 10Hz Input: 3.3V-5V Size: 15x15x5.2mm Weight: 2.6g Speed Accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC2.0m(Outdoor) Receiver Sensitivity: Trace -166dBm Capture -160dBm Characteristics: High:50000m， Speed: 500m/s， acceleration 4G Operating temperature: -40°C – 85°C Storage temperature: -40°C – 105°C Package Includes: 1 x HGLRC M100_MINI GPS 1 x Heat Shrink Tube (Φ12mm x 20mm) 1 x HGLRC sticker 1 x HGLRC Manual 1 x SH1.0-4Pin Cable
